Instruction Manual

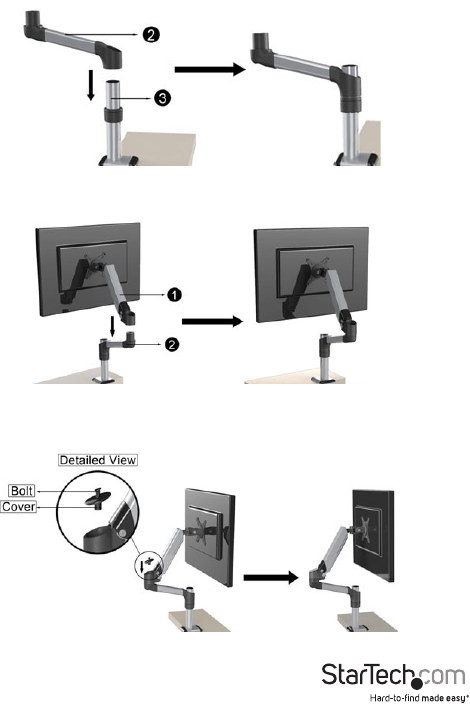

Attaching the Gas Spring Arm Assembly

1. Slide the Extension Arm (2) down onto the Pole (3).

2. Slide the Gas Spring Arm (1) onto the Extension Arm (2).

3. Place the Cover and Bolt (9) onto the Gas Spring Arm (1) and press the bolt down to

secure the two arms together.
