Instruction Manual

(Optional) Mounting to a Cabinet/Rack

If you wish to mount the SV1107IPEXT in a server/storage rack/cabinet, using the included

bracket:

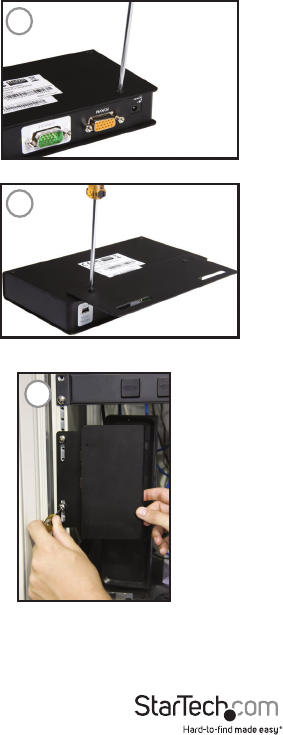

1. (Figure 1) Remove

the two screws

closest to the rear

panel of the

SV1107IPEXT, on the

base of the unit.

2. (Figure 2) Place the

mounting bracket on

the base, aligning

the circular holes on

the bracket with the

holes left from the

removed screws,

positioning the

bracket as shown.

Then, replace the screws

removed in step #1.

3. Mount the SV1107IPEXT

in the server/storage

rack/cabinet as appropriate:
