Instruction Manual

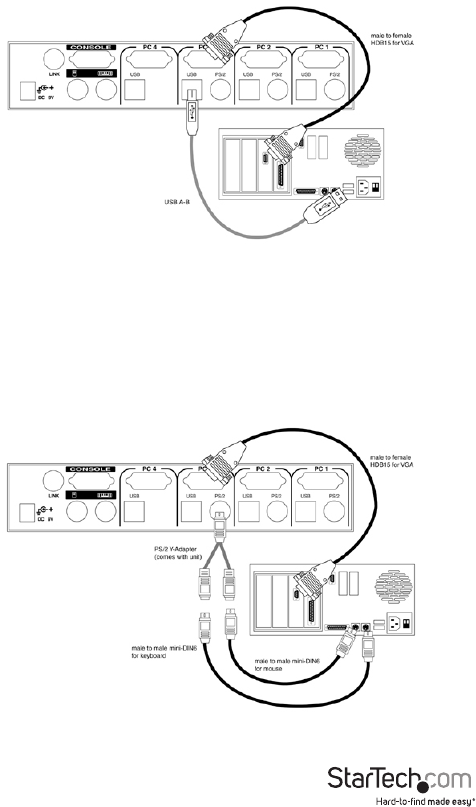

For PS/2 computers: Connect a PS/2 Y-adapter, which comes with the unit, to the SV431H PS/2,

then use two mini-DIN6 male-to-male cables for keyboard and mouse, see gure below. There

are two mini-DIN6 female connectors on the PS/2 Y-adapter marked as keyboard and mouse. Be

sure not to swap the connections.
