Instruction Manual

Rack Mount Kit for SV431USB (optional)

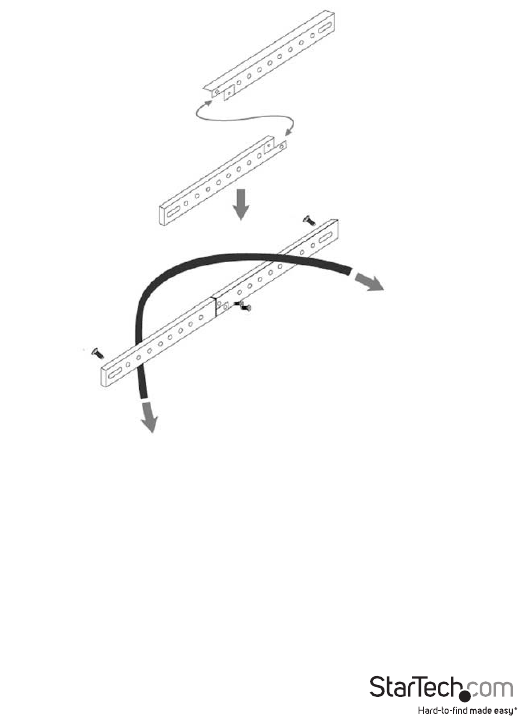

The gure below shows how to attach optional mounting brackets and cable support to the

SV431USB for standard 19-inch rack cabinet.

To the Rack Cabinet

back post

Two screws secure the

cable support

To the Rack Cabinet

back post

Keyboard, Mouse,

Monitor cables to

the computer

Keyboard, Mouse,

Monitor cables to the

StarView KVM Switch
