Instruction Manual

1

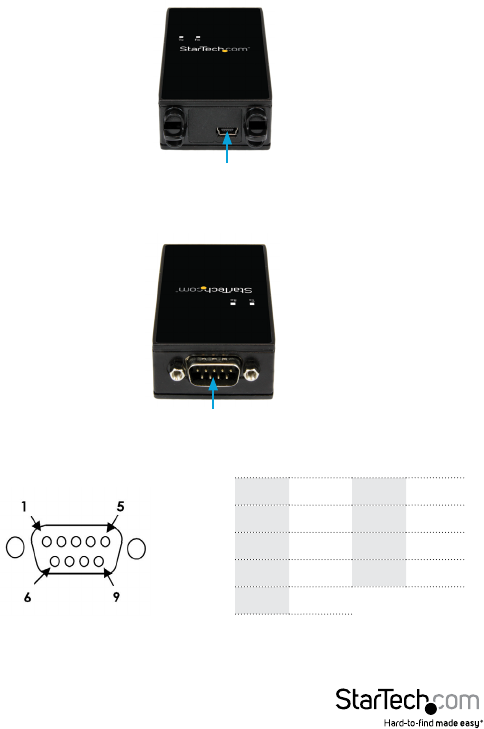

Product Overview

Front View

Rear View

RS232 Pinout

USB Mini-B

(5 pin) Female

DB-9 (9 pin;

D-Sub) Male

Pin 1 DCD Pin 6 DSR

Pin 2 RXD Pin 7 RTS

Pin 3 TXD Pin 8 CTS

Pin 4 DTR Pin 9 RI

Pin 5 GND
