Instruction Manual
3

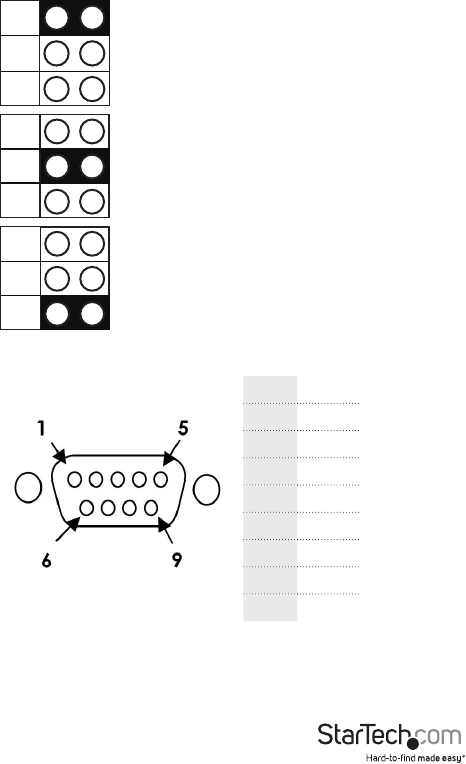

Aux power source selection:
RS232 Pinout
NOTE: Pin 9 of the DB9 connector will output DC power if the corresponding jumper
was enabled.
X5V: DC5V, from SP4, an SP4
power connection is required
X12V: DC12V, from SP4, an SP4
power connection is required
I12V (factory default): DC12V, from
PCI Express slot,
Pin 1 DCD
Pin 2 RXD
Pin 3 TXD
Pin 4 DTR
Pin 5 GND
Pin 6 DSR
Pin 7 RTS
Pin 8 CTS
Pin 9 RI
X5V
X5V
X5V
X12V
X12V
X12V
I12V
I12V
I12V
