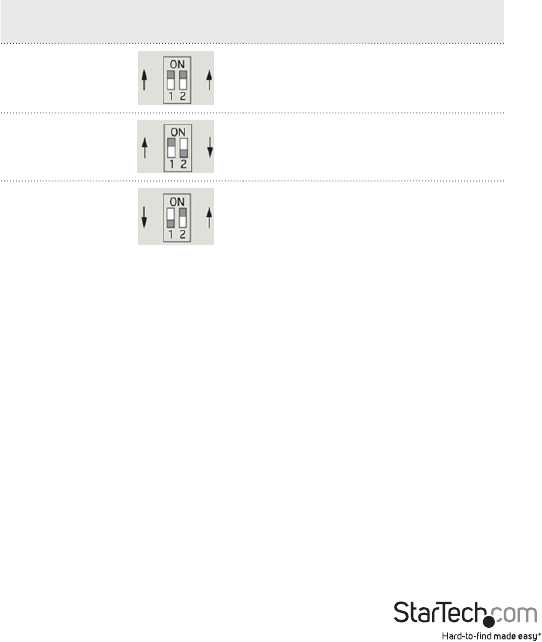

Hard Drive DIP Switch

The DIP switches on the rear of the hard drive enclosure rst needs to be set,

depending on the number of installed hard drives in the enclosure. The number of

hard drives aects the available RAID modes that can be selected.

Number of

Drives

DIP Switch Available RAID Modes

RAID0 (Span), RAID0 (Stripe), RAID1

(Mirror)

3 RAID3, RAID5

RAID0 (Span), RAID0 (Stripe), RAID3,

RAID5,

RAID10 (Stripe+Mirror)

RAID Mode

While the enclosure is powered on, press and hold the ‘Mode’ button for three (3)

seconds until one of the RAID LED’s start to ash. Pressing the ‘Mode’ button will now

switch between available RAID modes. Once set, press the ‘Conrmation’ button in the

back of the enclosure. The enclosure will power o. Once powered back on, it will be

set for the desired RAID mode.
