Instruction Manual

4

Computer Connection

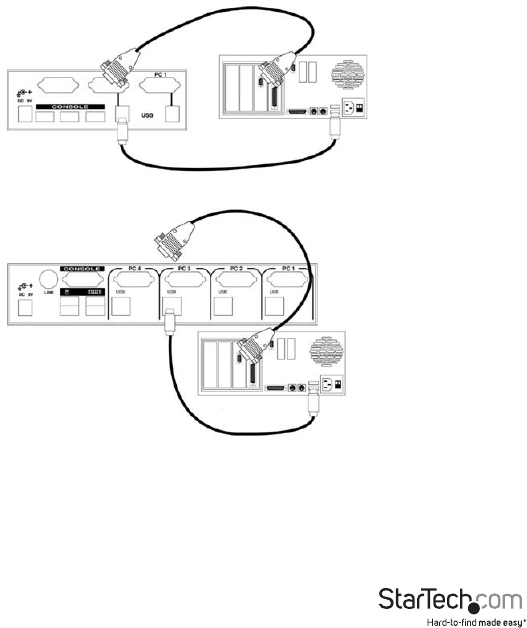

Use a HDB15 male-to-female cable to connect from a computer’s VGA port to the StarView’s VGA

port of the PC side, as shown below.

Use a USB 2.0 A-B cable to connect from the StarView’s USB 2.0 port on the corresponding

computer (A connector is the at connector) as shown below.

Female to Male HDDB15

for VGA

One USB Patch Cable for

both Keyboard & Mouse

Female to Male HDDB15

for VGA

One USB Patch Cable for

both Keyboard & Mouse
